ESP32 + WS2812B LED Strip + 18650 Battery

A Rechargeable Portable RGB Lighting Device

This article presents a rechargeable portable RGB lighting device based on ESP32, using a WS2812B addressable LED strip and powered by two parallel 18650 lithium-ion cells.

The system supports USB charging, delivers stable 5V power for both logic and LEDs, and is suitable for ambient lighting, desktop light effects, interactive installations, or embedded product prototypes.

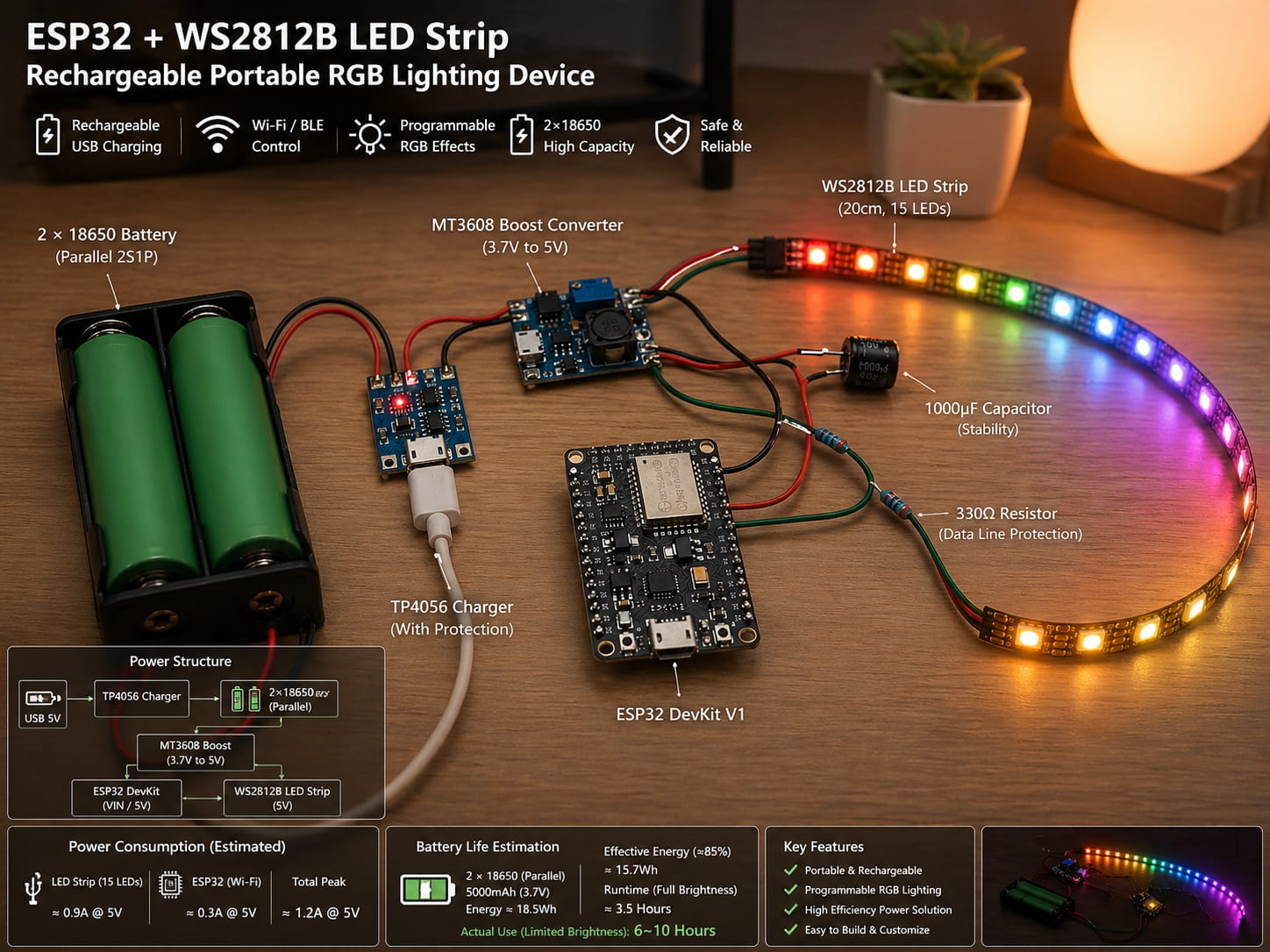

Finished Device Prototype

Project Goals and Key Features

Design Goals

Portability: Fully rechargeable and wire-free.
Precision Control: Individual RGB pixel control via MCU.
Modularity: Simple circuit architecture for easy customization.
Efficiency: Balanced brightness and long battery life.

Core Features

ESP32 MCU: High-performance controller with Wi-Fi and BLE capabilities.
WS2812B LEDs: Smart, single-wire programmable RGB pixels.
Parallel 18650 Power: 2× cells for high capacity and current capability.
Integrated Power Management: USB charging (TP4056) + 5V Boost (MT3608).
Safety First: Software-based brightness limiting and hardware protection.

System Architecture Overview

Power Flow

USB 5V Input
      │
      ▼
TP4056 Li-ion Charger (with overcharge/discharge protection)
      │
      ▼
2 × 18650 Battery (Parallel, 3.0V – 4.2V)
      │
      ▼
MT3608 Boost Converter (Stepped up to 5V)
      │
      ├── ESP32 DevKit (VIN / 5V Pin)
      └── WS2812B LED Strip (5V VCC Pin)

System Schematic Diagram

Bill of Materials (BOM)

1. Main Controller and LED Strip

Item	Model	Specification
MCU	ESP32 DevKit V1	Dual-core, 240 MHz, 3.3V GPIO
LED Strip	WS2812B	5V, Individually addressable
LED Count	12–15 LEDs	Approximately 20 cm strip
### 2. Power and Management
Item	Model	Description
:---	:---	:---
Battery	18650 Cells (x2)	Lithium-ion, connected in parallel
Charger	TP4056 Module	Micro-USB/Type-C with DW01 protection
Boost Converter	MT3608	DC-DC Step-up, ≥2A output
Bulk Capacitor	1000 µF / 10V	Electrolytic, for LED power stabilization
### 3. Passive Components
Item	Value	Purpose
:---	:---	:---
Resistor	330 Ω	Placed on LED data line to prevent signal spikes
Capacitors	100 nF / 10 µF	Decoupling for ESP32 stability
Switch	SPST	Main physical power toggle (optional)

Power Consumption and Battery Life

Consumption Calculations

WS2812B LEDs: Single LED (Full White) ≈ 60 mA @ 5V.
- Total (15 LEDs): 15 × 60 mA = 900 mA (4.5 W).
ESP32 MCU: * Idle: ~80–120 mA.
- Wi-Fi/BLE Active: 200–300 mA.

Peak System Current:

$I_{total} \approx 0.9A (LEDs) + 0.3A (ESP32) \approx 1.2A @ 5V$.

Runtime Estimation

Total Capacity: 2500 mAh × 2 = 5000 mAh.
Total Energy: $5Ah \times 3.7V = 18.5 Wh$.
Efficiency Factor: Considering Boost Converter at ~85% efficiency.
Usable Energy: $18.5 Wh \times 0.85 \approx 15.7 Wh$.
Max Runtime: $15.7 Wh / 4.5 W \approx 3.5 \text{ hours (Full Brightness)}$.
Mixed Use: With software brightness limiting (e.g., 30%), runtime extends to 6–10 hours.

Key Circuit Design Considerations

1. Parallel 18650 Cells

Connecting cells in parallel increases capacity and current overhead while reducing heat. * ⚠️ Important: Ensure both cells are the same model, same voltage, and same health/age before connecting.

2. Signal Integrity and Stability

1000 µF Bulk Capacitor: Essential across the LED power rails to handle "inrush" current during color changes, preventing ESP32 brown-out resets.
Logic Levels: While WS2812B expects 5V logic, most strips recognize the 3.3V signal from ESP32 GPIOs. For professional reliability, a 74AHCT125 level shifter is recommended.

ESP32 Arduino Control Code Example

Required Library: FastLED by Daniel Garcia.

#include <FastLED.h>

#define LED_PIN     18      // Data pin connected to ESP32
#define NUM_LEDS    15      // Number of LEDs in strip
#define BRIGHTNESS  80      // 0-255 scale (80 is approx 30% brightness)
#define LED_TYPE    WS2812B
#define COLOR_ORDER GRB

CRGB leds[NUM_LEDS];

void setup() {
  // Setup FastLED
  FastLED.addLeds<LED_TYPE, LED_PIN, COLOR_ORDER>(leds, NUM_LEDS);
  FastLED.setBrightness(BRIGHTNESS);
  FastLED.clear();
  FastLED.show();
}

void loop() {
  // Simple Breathing Blue Effect
  for (int b = 10; b < BRIGHTNESS; b++) {
    FastLED.setBrightness(b);
    fill_solid(leds, NUM_LEDS, CRGB::Blue);
    FastLED.show();
    delay(15);
  }

  for (int b = BRIGHTNESS; b > 10; b--) {
    FastLED.setBrightness(b);
    FastLED.show();
    delay(15);
  }
}

Advanced Application: Smart Ambient Light Bar

This prototype can be housed in a slim aluminum extrusion to create a professional-grade light bar.

Potential Enhancements:

Connectivity: BLE connection to sync with PC system load or phone notifications.
Interactivity: Capacitive touch sensors for mode switching.
Automation: LDR (Light Dependent Resistor) for auto-brightness based on room lighting.
Power Optimization: Utilize ESP32 Deep Sleep mode and battery monitoring via ADC to protect against cell depletion.

Conclusion

This ESP32-based architecture offers a robust foundation for portable lighting. By combining reliable power management (TP4056 + MT3608) with flexible software control, this design bridges the gap between a DIY hobbyist project and a viable commercial product prototype.
